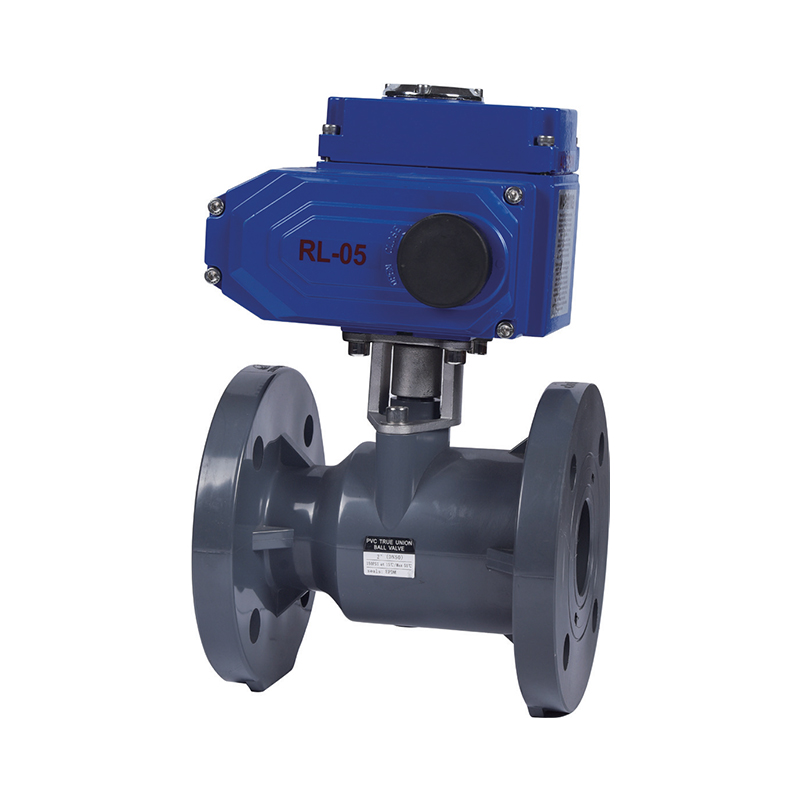

SCH8O/DIN UPVC/CPVC Electric Flange Ball Valve

The defining feature of the electric flange ball valve is that its closure component (the ball) rotates around the stem’s axis, typically enabling valve opening or closing through a 90° rotation. It boasts sealing performance, high flow capacity, low flow resistance, simple structure, easy maintenance, and long service life. The valve body’s passage is of the same diameter as the connected pipeline, allowing the medium to flow through almost without loss. Therefore, it is often used in applications requiring stringent sealing, such as controlling gases, liquids, steam, and media containing fibrous impurities. electric flange ball valves are widely applied in industries like petroleum, chemicals, metallurgy, light industry, papermaking, power plants, and refrigeration. Particularly, they are commonly used as emergency shut-off valves in oil depots, chemical facilities, and gas tank pipelines. In emergencies, such as fires caused by oil or hazardous material leaks to power outages, the electric flange ball valve automatically shuts off without manual operation, effectively preventing secondary accidents, reducing property damage, and safeguarding personnel safety.

Hubungi Kami

Sebelumnya：SCH8O/DIN UPVC/CPVC Pneumatic Butterfly Valve
Seterusnya：SCH8O/DIN UPVC/CPVC Pneumatic Flange Ball Valve

parameter permohonan Piawaian Teknikal

(1) Material: UPVC, CPVC
(2) Size: 2"-12", DN50-DN300, dn63-dn315
(3) Standards: ANSI, DIN
(4) Connection: flange
(5) Work pressure: 150PSI, 1.0MPa
(6) Operating temperature: UPVC(-10°C-60°C), CPVC(-10°C-90°C)
(7) Body color: UPVC (dark gray), CPVC (light gray)

SIZE/NOM.		dn32	dn40	dn50	dn63	dn75	dn90	dn110	dn140	dn160
		(DN25)	(DN32)	(DN40)	(DN50)	(DN65)	(DN80)	(DN100)	(DN125)	(DN150)
		(1")	(1-1/4")	(1-1/2")	(2")	(2-1/2")	(3")	(4")	(5")	(6")
D1		115	140	145	165	180	195	220	250	285
D2	DIN	85	100	110	125	145	160	180	210	240
	ANSI	79	89	98	121	140	152	191	216	241
	JIS	42.5	48.5	61	73	90	105	132	158	186
N-Φ	DIN	4-Φ14	4-Φ18	4-Φ18	4-Φ18	4-Φ18	8-Φ18	8-Φ18	8-Φ18	8-Φ18
	ANSI	4-Φ16	4-Φ16	4-Φ16	4-Φ19	4-Φ19	4-Φ19	4-Φ19	8-Φ22	8-Φ22
	JIS	4-Φ19	4-Φ19	4-Φ19	4-Φ19	4-Φ19	8-Φ19	8-Φ19	8-Φ23	8-Φ23
δ		16	18	18	20	20	25	25	27	29
F		-	-	-	-	45	45	49	49	49
M		40	52	52	70	84	84	121	121	121
Q		2×M6	2×M8	2×M8	2×M8	4×M10	4×M10	4×M10	4×M10	4×M10
Torque (N ·M)		4	6	8	12	18	26	35

Electric actuator specifications

Ball valve	Model	Maximum output torque	Action time 90°		Output shaft	Motor	Rated current
Ball valve	Model	N·M	Special	Standard	mm	W	AC 220V/A	AC 380V/A	DC 24V/A
dn20-dn50	RL003	30	5-10	15	11*11	AC20 DC2	0.1	0.05	0.2
dn63-dn75	RL005	50	5-15	30	14*14	15	0.15	0.1	2
dn90	RL010	100	15/30/60	30	17*17	31	0.28	0.19	2.5
dn110	RL015	150	15/30/60	40	17*17	50	0.5	0.22	5
dn140	RL020	200	5/15/90	40	22*22	71	0.6	0.25	8.5
dn160	RL050	400	5/15/90	40	22*22	118	1	0.5	8.5

SCH80 / DIN · ELECTRIC · FLANGED

UPVC / CPVC Electric Flange Ball Valve

On-off · Modulating · Full port · Flanged ends · ISO 5211

The SCH80/DIN UPVC/CPVC Electric Flange Ball Valve is an automated flow control device engineered for remote on-off or modulating service in corrosive and high-purity fluid systems requiring flanged connections. Manufactured to ASTM SCH80 and DIN standards, this valve integrates an electric actuator with a flanged full-port ball valve body. The actuator is available in on-off (with limit switches) or modulating (with 4–20 mA positioner) configurations, providing precise control for process automation. The flanged ends comply with DIN PN10/PN16 or ANSI Class 150 drilling patterns, enabling direct integration into existing flanged piping systems without adapters. PTFE seats and seals deliver bubble-tight shut-off. The actuator mounting follows ISO 5211 standards. This valve is widely used in automated process control, chemical dosing, water treatment, and industrial manufacturing where electric actuation is preferred over pneumatic systems.

DN15–DN100 Size range

PN10–PN16 Pressure rating

–20°C to 93°C CPVC range

ISO 5211 Mounting pad

Flanged Connections

DIN PN10/PN16 or ANSI Class 150 flanges provide secure, leak-proof integration into existing piping systems without additional adapters.

Electric Actuation

On-off or modulating electric actuators enable remote control, process automation, and precise positioning without pneumatic supply.

Bubble-Tight Shut-Off

PTFE seats provide a reliable seal against the chrome-plated or solid CPVC ball, ensuring zero leakage across the full pressure range.

Chemical Resistance

UPVC and CPVC bodies resist acids, bases, and salts. CPVC extends service to 93°C for hot corrosive media.

Valve Specifications

Body UPVC · CPVC

Ball Chrome-plated brass · Solid CPVC

Seats PTFE · EPDM (optional)

Flange standard DIN PN10/PN16 · ANSI Class 150

Face-to-face DIN EN 558 Series 1

Standards ASTM D2467 · DIN 8061/8062 · ISO 16139

Actuator Data

Type On-off · Modulating

Supply voltage 24V · 110V · 230V AC/DC

Control signal On-off (limit switches) · 4–20 mA (modulating)

Mounting ISO 5211 · Direct mount

Protection IP65 · IP67 (optional)

Actuator sizing depends on valve torque and supply voltage. Consult factory for selection.

Application Areas

Chemical Automated acid dosing · Reactor feed · Transfer lines

Semiconductor UPW distribution · Chemical delivery · Wet bench

Energy Battery electrolyte · Cooling water · Solar etching

Water Wastewater · RO permeate · Desalination · Discharge

Pharma DI water loops · CIP systems · Sanitary lines

Automotive Paint circulation · Parts washing · Coolant

Installation Guidelines

Flange connections: Use full-face EPDM or PTFE gaskets. Torque bolts evenly in cross pattern to 15–20 Nm.
Actuator mounting: Ensure ISO 5211 mounting pad alignment. Use correct coupling and bracket.
Electrical connections: Verify voltage and wiring. Use conduit for protection. Ground actuator properly.
Orientation: Install with actuator in accessible position. For horizontal lines, stem should be vertical.
Control signal: For modulating valves, verify 4–20 mA loop wiring and polarity.
Testing: Cycle valve manually and electrically before placing in service.

Critical Restrictions

Temperature: UPVC 60°C max · CPVC 93°C max. Do not exceed seat and gasket ratings.
Supply voltage: Must match actuator rating. Voltage fluctuations may affect performance.
Not rated for steam service. Avoid rapid thermal cycling and pressure surges.
Do not use with concentrated nitric acid (>15%) in UPVC bodies.
Flange bolts: Do not overtighten — cracking risk above 22 Nm for DN80 .
UV exposure: Use UV-stabilized material or apply protective coating.
Actuator storage: Protect from moisture and debris. Store in clean, dry area.

Frequently Asked Questions

What flange standards are available?

The valve is available with DIN PN10/PN16 flanges (per DIN 2501) or ANSI Class 150 flanges. DIN flanges are standard for European and metric piping systems. ANSI flanges are available for North American and imperial systems. Specify the flange standard when ordering.

What is the difference between on-off and modulating actuators?

On-off actuators provide open or closed position only, controlled by a switch signal. Modulating actuators accept a continuous 4–20 mA signal and position the valve at any point between fully open and fully closed, enabling precise flow control.

What voltage options are available?

Actuators are available in 24V AC/DC, 110V AC, and 230V AC configurations. Select based on your control system and available power supply. 24V is common for PLC and DCS systems; 110V/230V are used for direct line power.

What protection rating is provided?

Standard actuators are IP65 rated, providing dust-tight and water-jet protection. IP67 rating is available for submersion resistance. Outdoor installations should use IP65 or higher with appropriate cable glands.

Can this valve be used for throttling control?

Yes, with a modulating actuator and 4–20 mA positioner. The electric actuator provides precise positioning, enabling accurate flow control. Throttling service may reduce seat life compared to on-off service.

Syarikat

Zheyi Pipeline (Wuhan) Co., Ltd.

ZHEYI Group ya China SCH8O/DIN UPVC/CPVC Electric Flange Ball Valve Untuk industri makanan/automotif/elektronik pembekal dan dibuat khas SCH8O/DIN UPVC/CPVC Electric Flange Ball Valve Untuk industri makanan/automotif/elektronik kilang. Kami diasaskan pada tahun 2007, memberi tumpuan kepada penyelidikan dan pembangunan, pembuatan, jualan dan perkhidmatan paip industri CPVC dan UPVC. Syarikat itu telah memperoleh beberapa pensijilan, termasuk lesen pengeluaran peralatan khas, lesen kebersihan produk berkaitan air Wilayah Zhejiang, pensijilan sistem pengurusan kualiti IS09001, pensijilan sistem pengurusan alam sekitar IS014001, dan pensijilan sistem pengurusan kesihatan dan keselamatan pekerjaan IS045001. Syarikat itu mempunyai lebih daripada 50 hak harta intelek bebas dan hak import dan eksport kendalian sendiri. Untuk menyediakan produk yang pelbagai dan perkhidmatan yang lebih baik, syarikat telah memperkenalkan teknologi canggih, peralatan perkakas, dan bahan mentah dan sistem pengurusan yang unik dari Jerman dan Amerika Syarikat. Selama bertahun-tahun, produk kami telah digunakan secara meluas dalam pengangkutan saluran paip cecair asid dan alkali, air ultratulen, air minuman, air tulen gred elektronik, dan air sisa industri dalam kimia, metalurgi, fotovoltaik, kuasa nuklear, bateri litium, semikonduktor elektronik, makanan, perubatan, kereta, rawatan air industri dan industri lain. Pada masa ini, Kumpulan ZHEYI telah menubuhkan lebih daripada 30 syarikat jualan di seluruh negara, dan semua jenis produk dieksport ke Eropah, Amerika, Asia Tenggara dan negara dan wilayah lain, dan sangat digemari oleh pelanggan domestik dan asing.

Sijil Kepujian

Berita

Double Containers Depart for South America – ZHEYI Group E...
Aug 31,2026
Recently, ZHEYI Group successfully completed the shipment of two full containers, both loaded and dispatched simultaneously, setting sail for the South American market. This milestone marks another step forward in our...
belajar lagi
Future Trends in CPVC Piping Systems: What Industrial Buye...
Aug 26,2026
Future trends in CPVC piping systems are not only about the pipe itself. They are about system-level specification: better high-temperature compound data, automation-ready valves, tighter global standards, and clos...
belajar lagi
Injection Molding Process for CPVC Fittings: From Resin to...
Aug 20,2026
Apabila kontraktor paip membuka sekotak siku CPVC di tapak kerja kilang kimia dan melihat beberapa keping dengan permukaan yang sedikit kusam atau garisan samar, puncanya jarang disebabkan bahan mentah. Hampir sela...
belajar lagi

Tinggalkan mesej

Kawalan kualiti yang ketat

Kumpulan ZHEYI mematuhi prinsip "kualiti didahulukan", mengguna pakai peralatan termaju antarabangsa dan bahan mentah berkualiti tinggi, mengawal dengan ketat setiap pautan pengeluaran, dan komited untuk menyediakan produk saluran paip dengan prestasi cemerlang dan penampilan yang indah.

Syarikat itu menggunakan peralatan pengeluaran termaju dan bahan berkualiti tinggi, termasuk Sekisui Jepun dan Lubrizol Amerika Syarikat. "ZHEYI" dengan sempurna menggabungkan teknologi pengeluaran yang indah dengan pengurusan profesional, dan setiap produk menjalani kawalan kualiti yang ketat - daripada pengeluaran, pemeriksaan hingga penghantaran akhir, memastikan gabungan penampilan dan fungsi yang sempurna.
Ujian prestasi ketepatan

Di ZHEYI, setiap produk direka dengan teliti, bukan sahaja memfokuskan pada reka bentuk estetik yang indah, tetapi juga sentiasa komited kepada kualiti intrinsik yang sangat baik. Ujian prestasi yang ketat memastikan produk dapat mengekalkan kestabilan dan ketahanan walaupun dalam keadaan yang teruk.:

● Ujian ketumpatan: Mengukur ketumpatan bahan untuk memastikan keseragaman dan kestabilan struktur.
● Ujian suhu pelunakan Vicat: menilai tahap kelembutan bahan di bawah keadaan suhu tinggi untuk memastikan keupayaan produk untuk menahan ubah bentuk dalam pelbagai persekitaran.
● Ujian ketuhar: mensimulasikan rintangan haba jangka panjang dan mengesahkan keupayaan produk untuk menahan suhu tinggi untuk masa yang lama.
● Ujian hidrostatik: Nilaikan kekuatan paip di bawah keadaan tekanan tinggi untuk memastikan keselamatan dan kebolehpercayaan produk.
● Ujian hentaman tukul jatuh: Uji rintangan hentaman produk semasa pengangkutan, pemasangan dan penggunaan harian.

SCH8O/DIN UPVC/CPVC Electric Flange Ball Valve Pengetahuan industri

Application scenarios and advantages of electric flange ball valves in industrial automation systems

Electric flange ball valves play an important role in industrial automation systems due to their fast response, high sealing, remote control and other characteristics. The following are its typical applications and core advantages in multiple key industries:

1. Safe Drinking Water
Application: Used in water supply pipe networks, pump station switching and disinfection systems in water plants to ensure precise control of water flow.
Advantages: Electric drive can be integrated with SCADA system to achieve unattended adjustment and avoid water pollution risks.

2. Metallurgy
Application: Switching and regulation of high-temperature and high-pressure gases (such as blast furnace gas) and cooling water systems.
Advantages: Corrosion-resistant materials (such as stainless steel) can cope with strong acid and alkaline media, and the explosion-proof design of the actuator adapts to harsh environments.

3. Photovoltaic
Application: Chemical transportation (such as acid, inert gas) in silicon material production, and wastewater recovery systems.
Advantages: High sealing prevents harmful leakage, and electric control matches the rhythm of automated production lines.

4. Nuclear Power
Application: Isolation and discharge of nuclear island cooling system and radioactive wastewater treatment pipeline.
Advantage: Comply with nuclear safety standards (such as ASME III certification) and can be shut down in case of failure.

5. Electronic Semiconductor
Application: Precision delivery of ultrapure water (UPW) and special gases (such as nitrogen and argon).
Advantage: Polishing treatment of the inner wall of the valve body (Ra≤0.4μm) to avoid particle contamination and ensure process cleanliness.

6. Medicine
Application: Purified water, steam sterilization (SIP) and CIP cleaning systems in pharmaceutical processes.
Advantage: The dead-angle-free structural design meets GMP requirements and avoids the growth of microorganisms.

7. Industrial Water Treatment
Application: Circulating cooling water, reverse osmosis (RO) pretreatment and drug dosing control.
Advantage: Support Modbus/PROFIBUS communication and link with PLC to realize intelligent dosing.

8. Industrial Wastewater
Application: acid-base neutralization, switching and discharge of heavy metal wastewater treatment pipelines.
Advantages: PTFE seals are highly corrosion-resistant, and electric actuators can be programmed to meet intermittent discharge needs.

Jangan lepaskan peluang! Hubungi kami untuk berita terkini!
